Installing relays to protect the headlamp switches
Here we have an illustrated guide to installing the headlamps relays kit supplied by Moss Europe.

Relays - what are they and what do they do? V8NOTE579

See our full article on installing the kit supplied by Moss Europe as V8NOTE576
Photo installed

Posted: 200217

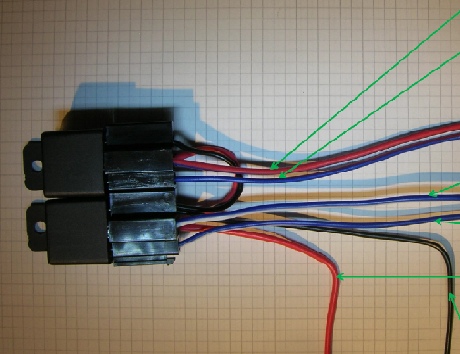

Above is the twin headlamp relays and wiring kit supplied by Moss Europe. Link
See a photo of the twin relays installed on the offside inner wing next to a 6RA relay.
87.


85.



30.

86.


87.

85.



30.

86.
Blue/Red (thick)
Low beam
Male bullet connector
Blue/Red
Light switch
Female connector

Red
Connected to terminal 30 in relay alongside
Black
Connected to terminal 86 in relay
alongside
Blue/White (thick)
High beam, Male bullet connector
Blue/White
Light switch, Female connector


Red
12v supply (20A fuse), ring terminal
Black
Ground/Earth, ring terminal
