Problems
with a very noisy hydraulic tappet
James Clydesdale contacted the V8 Register saying "I
have problems with a very noisy hydraulic tappet in my RV8 and wonder
if somebody could point me in the right direction regarding this.
Would appreciate any help or advice or perhaps guidance to a company
or professional who could make it good".
Tony Lake and Victor Smith provided a response.
(July 2024)
The article covers the need for regular oil changes,
preliminary checks on tappet noise, inspecting the hydraulic cam followers
or tappets and the options of replacing them. Article
Posted: 240723 |
|
|

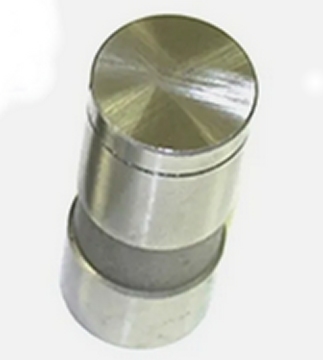

Hydraulic
tappets on a Rover V8 engine
The Buick derived engine produced by Rover was a key feature
of the MGBGTV8 and MGRV8 models with the sophistication of hydraulic
tappets which are self-adjusted by pressurised engine oil. The
purpose of the hydraulic tappet is to provide maintenance free
and quiet operation of the inlet and exhaust valves. It achieves
this by utilising engine oil pressure to eliminate the mechanical

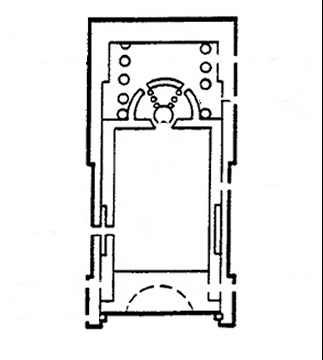

clearance between the rockers and the valve stems. During normal
operation, engine oil pressure present in the upper chamber
passes through the non-return ball valve and into the lower,
high pressure, chamber. When the cam begins to lift the outer
sleeve, the resistance of the valve spring felt through the
push rod and seat causes the tappet inner sleeve to move downwards
inside the outer sleeve. This downward movement of the inner
sleeve closes the ball valve and increases the pressure in the
lower, high pressure chamber, sufficiently to ensure that the
push rod opens the valve fully. As the tappet moves off the
peak of the cam the ball valve opens to equalise the pressure
in both chambers which ensures the valve closes when the tappet
is on the back of the cam.
